Rigid Drive Axle

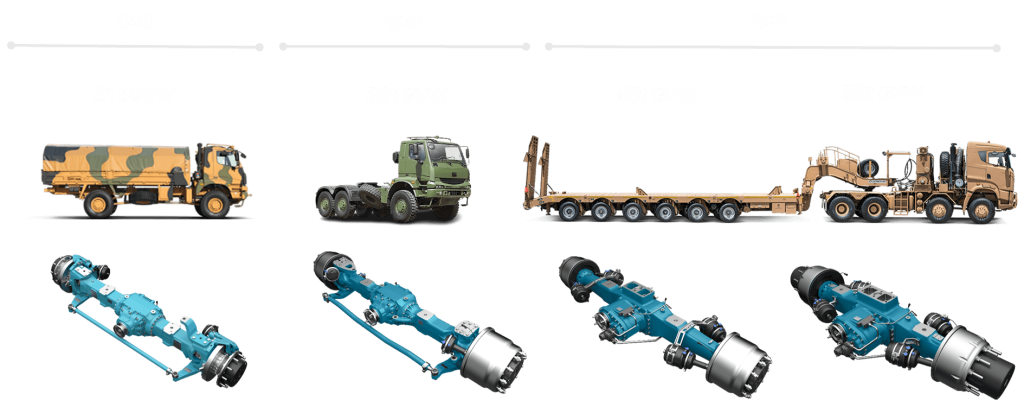

BASE rigid drive axle offers axle load capacity from 11 to 16 ton with hub reduction.
It is CTIS ready, while having inter-wheel lock differential. Selection of disc brake or drum brake is provided optionally.
 |
 |
 |
 |
 |
 |
|
| Product Name | RTA-110A | RTA-110A | RTA-120A | RTA-120A | RTA-135A | RTA-160A |
| Load Capacity | 11,000 kg | 11,000 kg | 12,000 kg | 12,000 kg | 13,500 kg | 16,000 kg |
| Brake System | Air actuated caliper, ventilated disc brakes (Ø 428×45) |
Air actuated caliper, ventilated disc brakes (Ø 428×45) |
Air actuated drum brake (Ø 410×180) |
Air actuated drum brake (Ø 410×180) |
Air actuated drum brake (Ø 410×180) |
Air actuated drum brake (Ø 410×180) |
| Steering Mechanism | Mechanically actuated, hydraulic assisted steering |
Non-steerable | Mechanically actuated, hydraulic assisted steering |
Mechanically actuated, hydraulic assisted steering |
Mechanically actuated, hydraulic assisted steering |
Mechanically actuated, hydraulic assisted steering |
| Total Axle Ratio | 6.91:1 or 6.54:1 | 6.91:1 or 6.54:1 | 6.91:1 | 6.91:1 | 6.91:1 | 6.91:1 |
| Differential Gear Ratio | 1.563:1 or 1.476:1 | 1.563:1 or 1.476:1 | 1.563:1 | 1.563:1 | 1.563:1 | 1.563:1 |
| Planetary Gear Ratio | 4.42:1 | 4.42:1 | 4.42:1 | 4.42:1 | 4.42:1 | 4.42:1 |
| Tire Size | 14R20 | 14R20 | 14R20 or 16R20 | 14R20 or 16R20 | 14R20 or 16R20 | 14R20 or 16R20 |
| Rim Connection | 10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
10 bolts M20x1.5, PCD Ø335 mm 90-100mm rim offset |
| Steering Angle | 40° | n/a | 40° | 32° | n/a | n/a |
| Additional Features |
|
|
|
|
|
|
