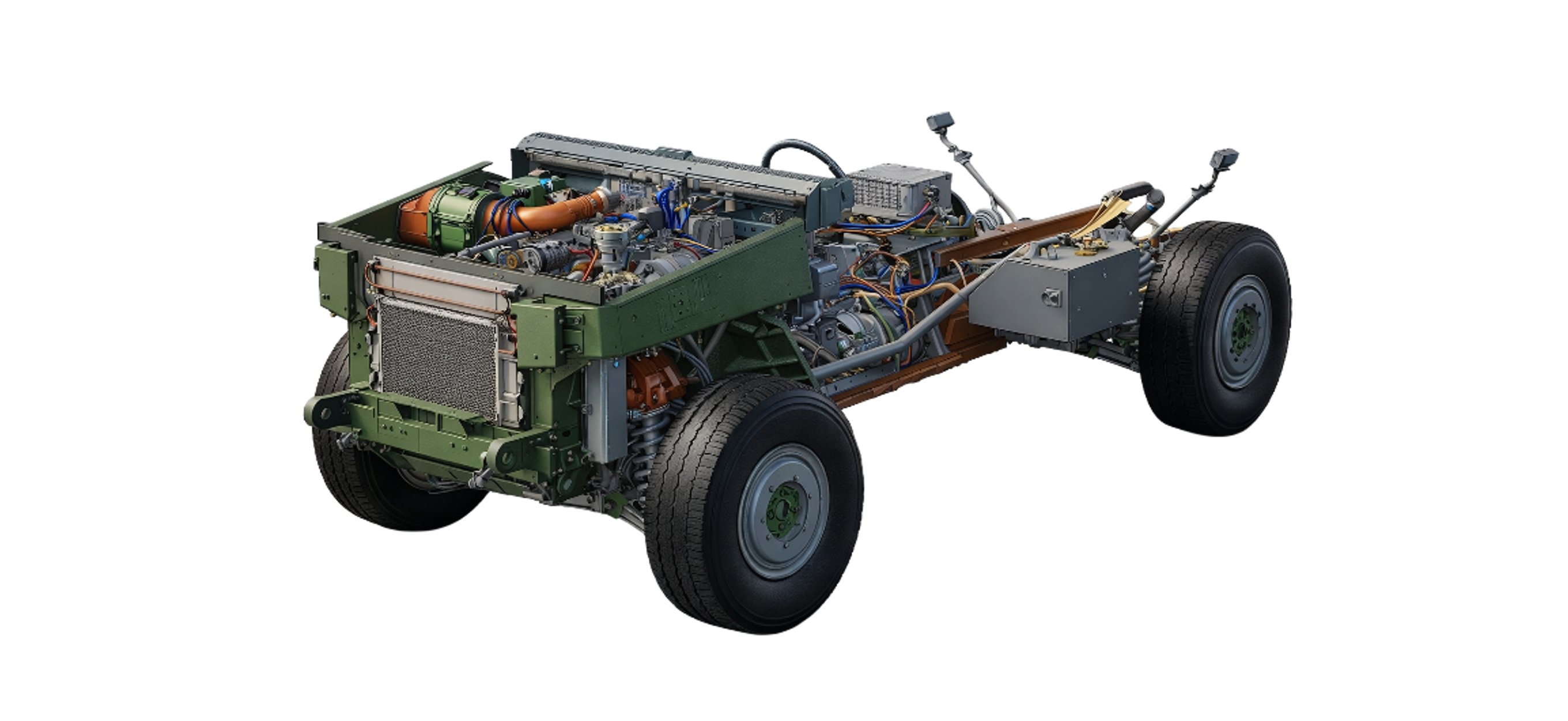

4×4 Rolling Chassis

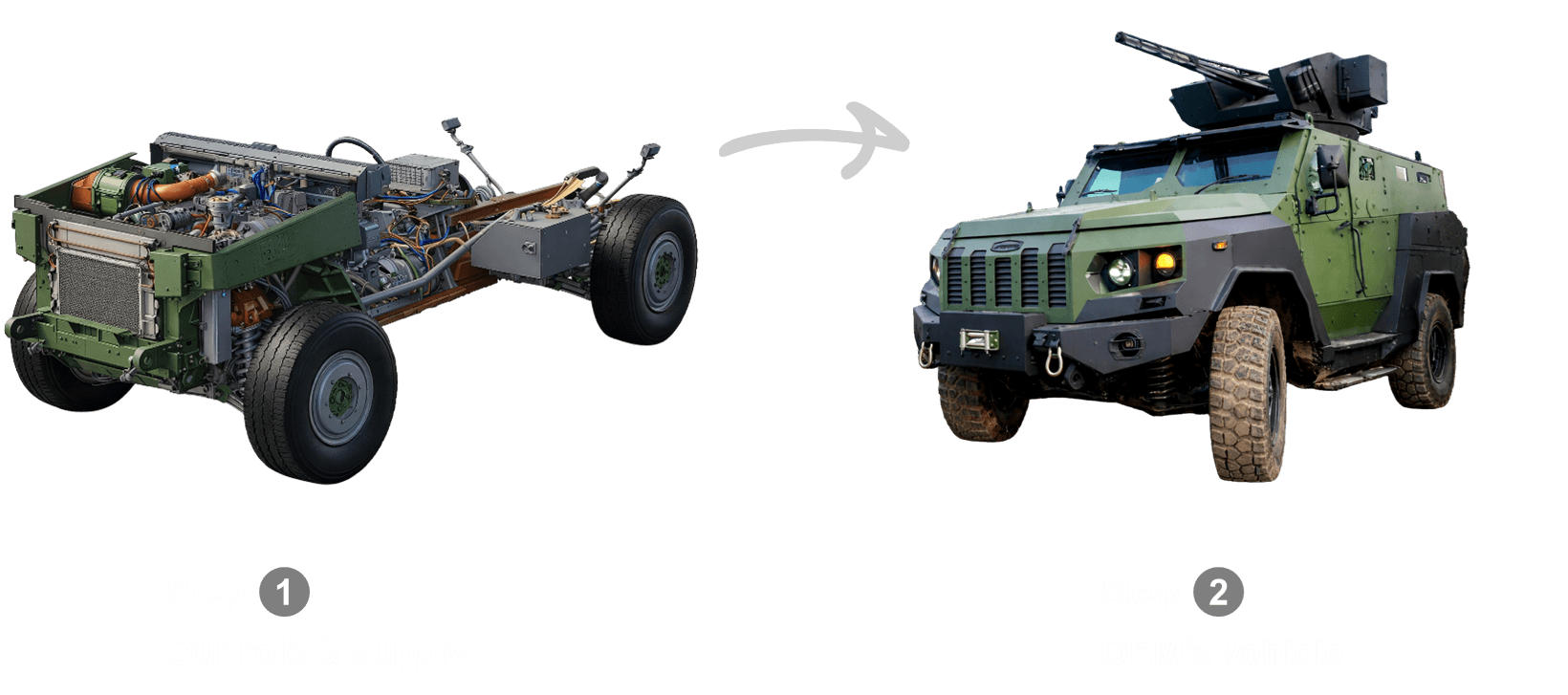

AWD rolling chassis integrated with innovative BASE driveline components provides a plug&play solution for vehicle manufacturers.
AWD rolling chassis is integrated with BASE independent suspension drive axles and BASE two-speed transfer case
No further integration engineering effort required to integrate BASE drivetrain components to existing chassis.
Upon customer request, various configurations can be developed.
BS400-20C 4×4
| Wheelbase “A” | 3,710 mm |
| Overall length “B” | 6,140 mm |
| Ride height “C” | 1,168 mm |
| Top seat height “D” | 2,230 mm |
| Overall width “E” | 2,540 mm |
| Approach angle | 35⁰ |
| Departure angle | 60⁰ |
| GVW | 20.5 tons |
| Gradeability | 70% |
| Max Speed | 110 km/h |
| Fuel Tank | 250 l |
| Ground Clearance | 400 mm (static) |
| Operating Temperature | -32 / +55 ⁰C |
| Displacement | 8.9 l 6 cylinder |
| Max Power | 400 PS at 2,100 rpm |
| Max Torque | 1,550 Nm at 1,100-1,400 rpm |
| Emission | Euro III |
- 6 speed fully automatic
- Torque converter
- BASE BTA-110, fully independent
- Planetary hub reduction & differential lock
- CTIS & ABS ready
- Front GAW: 9,000 kg
- Rear GAW: 10,500 kg
| Type | Two circuit, ABS |
| Service Brake | Dry type, fully air / disc |
| Park Brake | Spring type air actuated on rear axle |
- Fully independent suspension
- Coil springs & shock absorbers
- BASE TKA-420/10
- AWD (All Wheel Drive), 4×4
- Interaxle cross differential lock
- 50%-50% torque distribution
- Pneumatically actuated shifting
- High / low / neutral gear
- Hydraulic power assisted
- Tiltable and telescopic steering wheel
- Steering backup pump
- 14.00 R20 run-flat
- Central tire inflation system
| Batteries | 2 x (180 Ah/12V) |
| Alternator | 155A / 28V |
BS360-14C 4×4
| Wheelbase “A” | 3,683 mm |
| Overall length “B” | 6,030 mm |
| Overall width “E” | 2,495 mm |
| GVW | 14 tons |
| Gradeability | 100% |
| Max Speed | 110 km/h |
| Fuel Tank | 200 l |
| Ground Clearance | 400 mm (static) |
| Operating Temperature | -30 / +49 ⁰C |
| Displacement | 6.7 l 6 cylinder |
| Max Power | 360 PS at 2,400 rpm |
| Max Torque | 1,100 Nm at 1,400-2,300 rpm |
| Emission | Non-Euro |
- 6 speed fully automatic
- Torque converter
- BASE independent double wishbone with planetary hub reduction
- BASE TKB 420/10
| Type | Two circuit, ABS |
| Service Brake | Air over hydraulic / disc brakes |
| Park Brake | Hydraulically actuated on T/C |
- Fully independent suspension
- Coil springs & shock absorbers
- Hydraulic power assisted
- 365/80 R20 R20 run-flat
- Central tire inflation system
(2 x 120 Ah/12V) AGM batteries
